$2,720.54
| /
Equipment Parameters
-
Equipment brand: Lingchuang 3D
-
Equipment Model: LS-800/1000/1200/1500
-
Molding Technology: FDM (fused deposition)
-
Equipment Grade: Industrial
-
Equipment Voltage: 110-220V
-
Equipment Power: 350W-1500W
Technical Parameters
-
Printing Accuracy: 0.05mm
-
Print Layer Thickness: 0.05-0.5 adjustable
-
Sprinkler Temperature: 75-300 degrees
-
Print Speed: 10-180mm/s
-
Chassis Material: Metal full seal
-
Platform Material: Glass aluminum alloy heating
-
Working Noise: 50 decibels
-
Lighting: Built-in LED light
-
Number of Nozzles: Single nozzle (customizable dual nozzle)
-
Sprinkler Size: Standard 0.5mm/Optional 0.3, 0.4, 0.6, 0.8, 1.0, 1.2mm
-
Positioning Accuracy: XY axis 0.001mm, Z axis 0.0025mm
-
Fuselage Structure: Laser precision integrated molding fully sealed metal (can be customized temperature)
-
XY Axis Structure: Double linkage gantry type high precision machine tool guide
-
Z-axis Structure: Precision ball screw
-
Platform Calibration: Automatic pre-calibration platform
-
Screen Control: 7.0-inch full-color touch screen (support multi-language switching)
Print Size
-

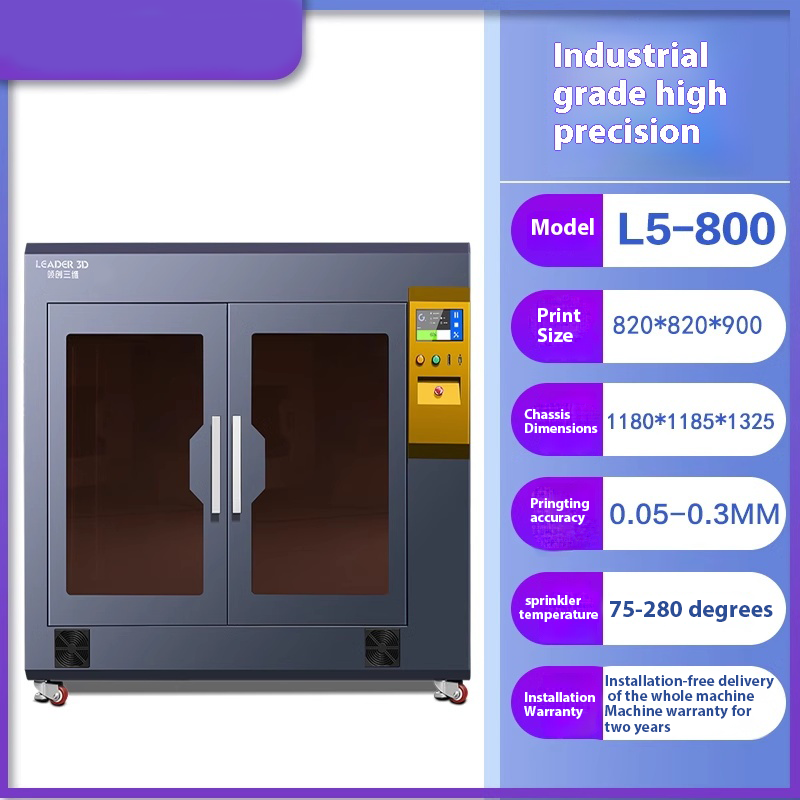

820*820*900、1020*1020*1100
-

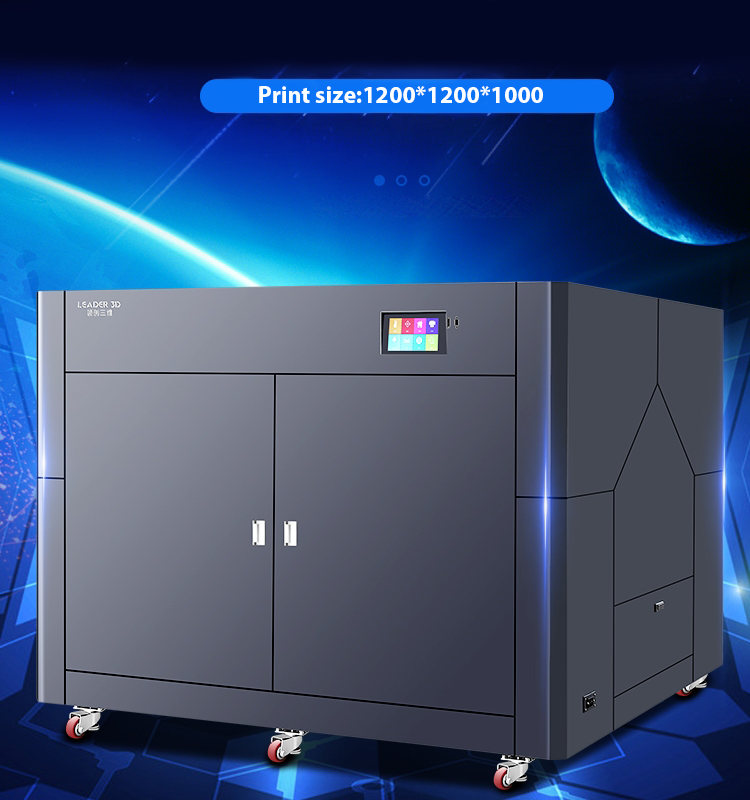

1200*1200*1000、1500*1500*1000
Equipment Size
- 132*118*110cm、152*138*140cm
- 165*160*154cm、195*190*154cm
Printed Material
-
All kinds of PLA, PETG, TPU, PP, ABS, PC, nylon
1.75mm consumables such as carbon fiber,wood PLA,PVA water
soluble materials,PA12,ASA,etc.can be used universally(temperature
resistant materials need to be matched with constant temperature)
General Parameters
-
Connection Mode: U disk/SD card/optional WIFI connection
-
Slicing Software: LEADER3D official slicing software/CURA
-
Operating System: Windows
-
Model Format: STL/OBJ/STP/3MF
-
Packaging Method: Export standard plywood wooden case packaging GB/optional British standard
-
Power Plug:American standard,European standard etc
-
Protection Function: Power-off continuation, material interruption alarm, one-key material change, automatic levelling
