LS-1000 3D Industrial grade printer

$8,720.54

Model: L5-400(Printable size 400*400*500mm)

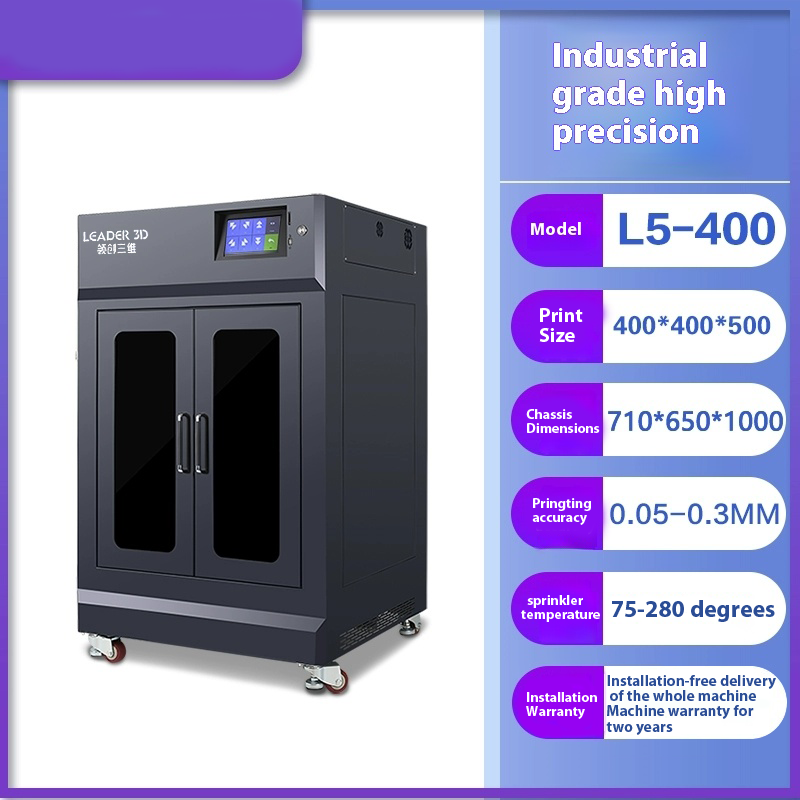

L5-400(Printable size 400*400*500mm)

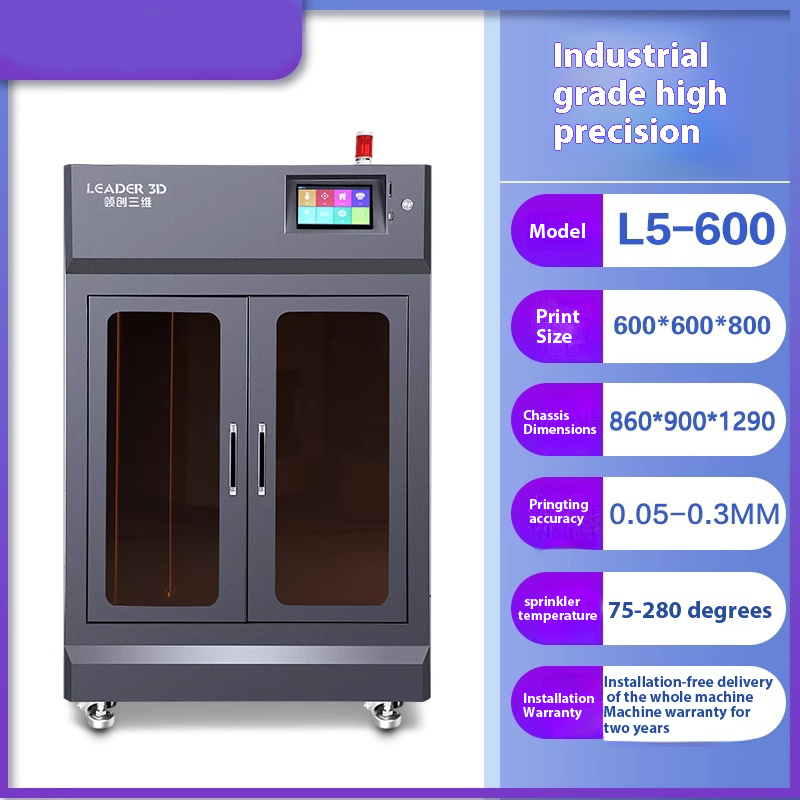

L5-600(Printable size 600*600*800mm)

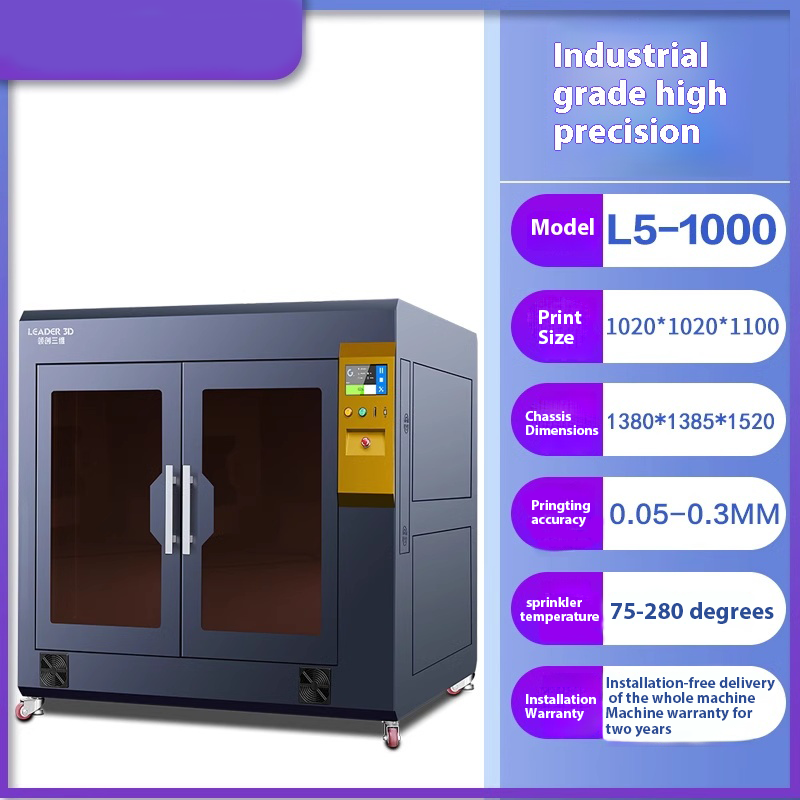

L5-1000(Printable size 1000*1000*1000mm)

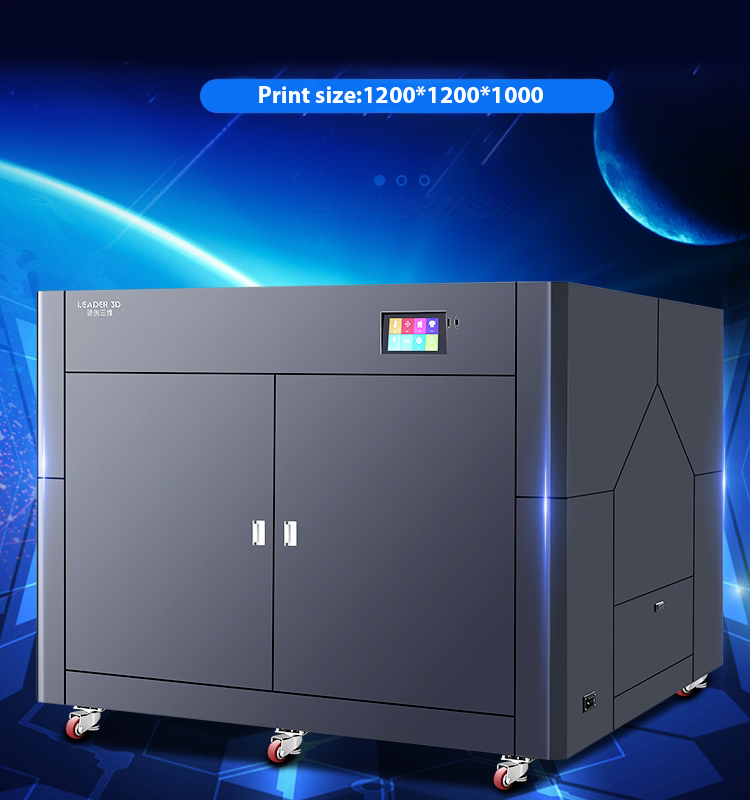

L5-1200(Printable size 1200*1200*1000mm)

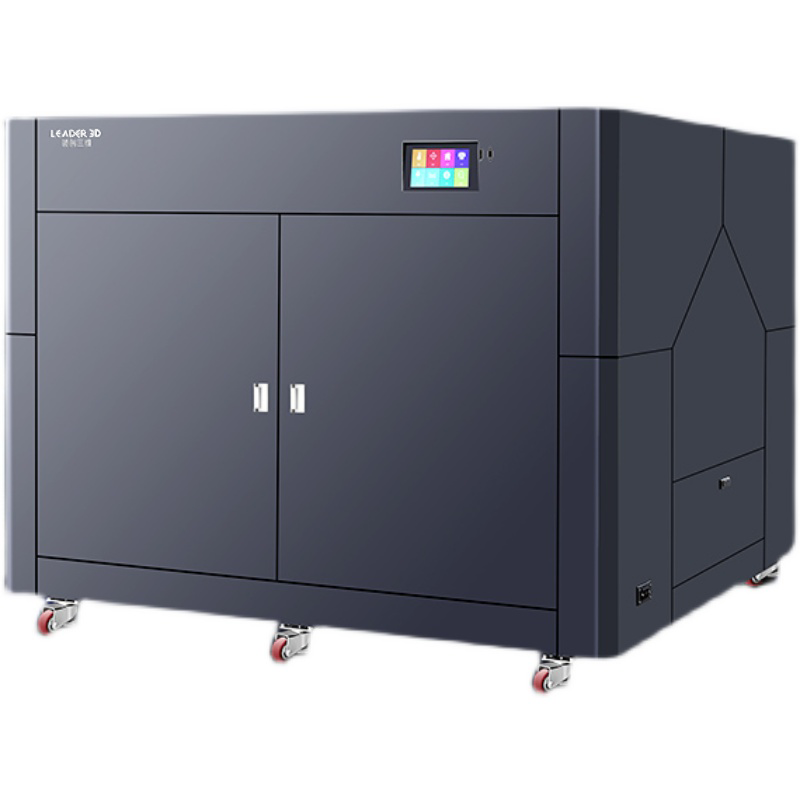

L5-1500(Printable size 1500*1500*1000mm)

Product variants

Shipping

All orders are subject to shipping fees, and the specific amount varies by country and region.

Please note that this does not include import duties (US, EU, UK, CA).We will work hard to process and ship the order as soon as possible.

Returns

We will gladly accept returns or exchanges. Please contact our support team to receive a Return Authorization number (RA#) within 7 days of receiving your order. Please note, sale items, special orders are FINAL SALE and thus not eligible for return or exchange. Exchanges and refunds are processed within 5-7 business days after receiving the merchandise, at which time you will be notified by e-mail.

Please note, all exchanges are based on stock availability.

All returns are accepted at the discretion of Mantiz Innovation

Share:

Share

Need help?

LS-1000 3D Industrial grade printer

L5-400(Printable size 400*400*500mm)

$8,720.54

7 Day Returns

Customer Service

Secure Checkout

Product Details

Equipment Parameters

Equipment brand: Lingchuang 3D
Equipment Model: LS-400/600/1000/1200/1500
Molding Technology: FDM (fused deposition)
Equipment Grade: Industrial
Equipment Voltage: 110-220V
Equipment Power: 350W-1500W

Technical Parameters

Printing Accuracy: 0.05mm
Print Layer Thickness: 0.05-0.5 adjustable
Sprinkler Temperature: 75-300 degrees
Print Speed: 10-180mm/s
Chassis Material: Metal full seal
Platform Material: Glass aluminum alloy heating
Working Noise: 50 decibels
Lighting: Built-in LED light
Number of Nozzles: Single nozzle (customizable dual nozzle)
Sprinkler Size: Standard 0.5mm/Optional 0.3, 0.4, 0.6, 0.8, 1.0, 1.2mm
Positioning Accuracy: XY axis 0.001mm, Z axis 0.0025mm
Fuselage Structure: Laser precision integrated molding fully sealed metal (can be customized temperature)
XY Axis Structure: Double linkage gantry type high precision machine tool guide
Z-axis Structure: Precision ball screw
Platform Calibration: Automatic pre-calibration platform
Screen Control: 7.0-inch full-color touch screen (support multi-language switching)

Print Size

820*820*900、1020*1020*1100
1200*1200*1000、1500*1500*1000

Equipment Size

132*118*110cm、152*138*140cm
165*160*154cm、195*190*154cm

Printed Material

All kinds of PLA, PETG, TPU, PP, ABS, PC, nylon
1.75mm consumables such as carbon fiber,wood PLA,PVA water
soluble materials,PA12,ASA,etc.can be used universally(temperature
resistant materials need to be matched with constant temperature)

General Parameters

Connection Mode: U disk/SD card/optional WIFI connection
Slicing Software: LEADER3D official slicing software/CURA
Operating System: Windows
Model Format: STL/OBJ/STP/3MF
Packaging Method: Export standard plywood wooden case packaging GB/optional British standard
Power Plug:American standard,European standard etc
Protection Function: Power-off continuation, material interruption alarm, one-key material change, automatic levelling
